CTRL | Enclosed Automatic Transfer Switch

Expansion of the ATS series of Automatic Transfer Switches. Specially designed to guarantee power supply in critical facilities such as hospitals, data centres, industrial buildings, among others.

Available in four different sizes, ranging from 63A to 630A, in 3P, 3P+N and single-phase versions. Our range has now been expanded and is also available in enclosure, offering greater versatility.

Characteristics of CTRL1:

• C1 type C, from 63A to 630A.
• Suitable for environments subject to mechanical risks and dust hazards.
• Protection degree: IP66.
• Colour: RAL 7035.
• Closing plate: Bottom.
• Connection: top (input terminals) and bottom (output terminals)
• Protection: Polycarbonate protection cover.
• Material: 2 mm thick steel.
• Coating: Epoxy resin.
• Mounting: Wall.

Characteristics of CTRL2:

• C2 type D, from 63A to 630A.
• Suitable for environments subject to mechanical risks and dust hazards.
• Protection degree: IP66.
• Colour: RAL 7035.
• Closing plate: Bottom.

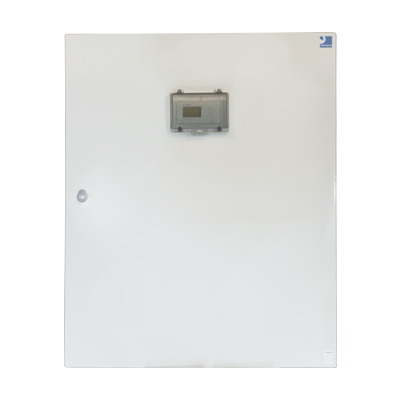

• Display installed on door with protective cover.

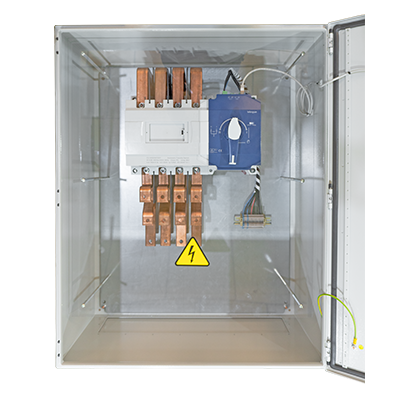

• Connection: ≤250A top and bottom, ≥400A bottom (Connection terminals are brought to the bottom of the enclosure via copper connection plates).
• Protection:
  • 63-80Amp flange connection.
  • 100-250Amp shrouds.
  • 400-630Amp polycarbonate protection plate.
• Inputs, outputs and auxiliary contacts pre-wired to terminals mounted on DIN rail.
• Material: 2 mm thick steel.
• Coating: Epoxy resin.
• Mounting: Wall.
