S3 | Interruptor Compacto | 16A – 125A
-->
Descripción
S3 Interruptores compactos y multipolares AC, diseñados para aplicaciones industriales. Están compuestos por 3 calibres diferentes, los cuales alcanzan desde 16A hasta 125A, en versiones de 3P, 3P+N, 6P y 8P. El polo neutro es avanzado en el cierre y retrasado en la apertura.
Tiene hasta 3 tipos de montaje: carril DIN, tras cuadro, fondo armario. Es compatible con una amplia gama de accesorios como cubre bornes, eje prolongado, polo adicional o contacto auxiliar. Los interruptores compactos S3 tienen hasta cuatro tipos diferentes de mando, ya sea directo con bloqueo, mando panel sin bloqueo, mando panel con bloqueo, o mando panel con bloqueo de emergencia.
La serie S3 de interruptores compactos y multipolares AC están diseñados conforme a las especificaciones de la norma IEC/EN 60947-3 para su empleo en aplicaciones industriales. Los distintos modelos de esta serie, ofrecen diversas posibilidades de fijación, solucionando así las necesidades más habituales para el accionamiento de máquinas y maniobras en cuadros eléctricos.
Códigos

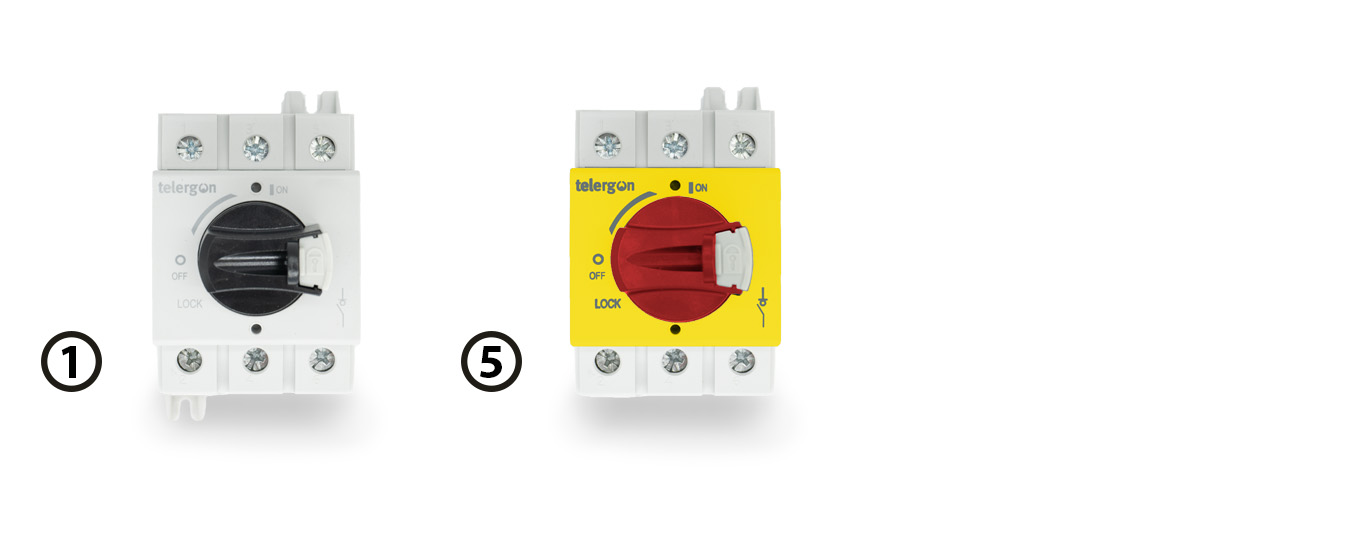

Montaje Carril DIN
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 1 | S3-00163P1DB | S3-00163N1DB |
| 000 | 20 | 1 | S3-00203P1DB | S3-00203N1DB |
| 000 | 25 | 1 | S3-00253P1DB | S3-00253N1DB |
| 000 | 32 | 1 | S3-00323P1DB | S3-00323N1DB |
| 000 | 40 | 1 | S3-00403P1DB | S3-00403N1DB |
| 00 | 63 | 1 | S3-00633P1DB | S3-00633N1DB |
| 00 | 80 | 1 | S3-00803P1DB | S3-00803N1DB |
| 0 | 100 | 1 | S3-01003P1DB | S3-01003N1DB |
| 0 | 125 | 1 | S3-01253P1DB | S3-01253N1DB |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 5 | S3-00163P5DB | S3-00163N5DB |
| 000 | 20 | 5 | S3-00203P5DB | S3-00203N5DB |
| 000 | 25 | 5 | S3-00253P5DB | S3-00253N5DB |
| 000 | 32 | 5 | S3-00323P5DB | S3-00323N5DB |
| 000 | 40 | 5 | S3-00403P5DB | S3-00403N5DB |
| 00 | 63 | 5 | S3-00633P5DB | S3-00633N5DB |
| 00 | 80 | 5 | S3-00803P5DB | S3-00803N5DB |
| 0 | 100 | 5 | S3-01003P5DB | S3-01003N5DB |
| 0 | 125 | 5 | S3-01253P5DB | S3-01253N5DB |
| Calibre | Amp | Mando | 6P | 8P |
| 000 | 16 | 0 | S3M00166P0DB | S3M00168P0DB |
| 000 | 20 | 0 | S3M00206P0DB | S3M00208P0DB |
| 000 | 25 | 0 | S3M00256P0DB | S3M00258P0DB |
| 000 | 32 | 0 | S3M00326P0DB | S3M00328P0DB |
| 000 | 40 | 0 | S3M00406P0DB | S3M00408P0DB |
| 00 | 63 | 0 | S3M00636P0DB | S3M00638P0DB |
| 00 | 80 | 0 | S3M00806P0DB | S3M00808P0DB |

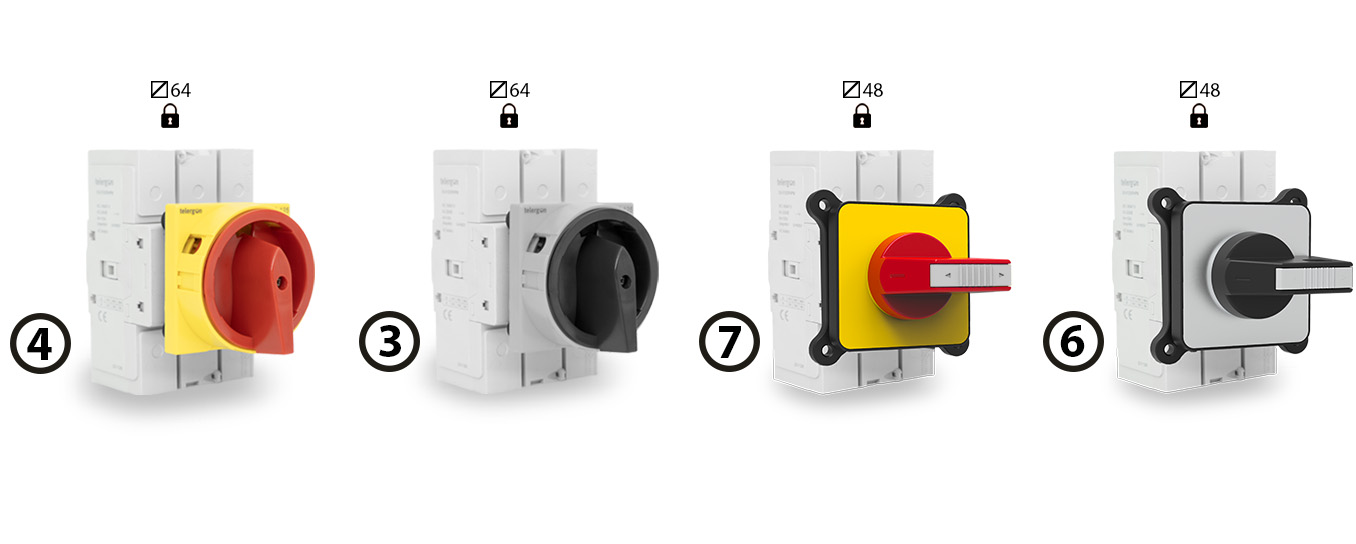

Montaje Tras Cuadro
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 4 | S3-00163P4PM | S3-00163N4PM |
| 000 | 20 | 4 | S3-00203P4PM | S3-00203N4PM |
| 000 | 25 | 4 | S3-00253P4PM | S3-00253N4PM |
| 000 | 32 | 4 | S3-00323P4PM | S3-00323N4PM |
| 000 | 40 | 4 | S3-00403P4PM | S3-00403N4PM |
| 00 | 63 | 4 | S3-00633P4PM | S3-00633N4PM |
| 00 | 80 | 4 | S3-00803P4PM | S3-00803N4PM |
| 0 | 100 | 4 | S3-01003P4PM | S3-01003N4PM |
| 0 | 125 | 4 | S3-01253P4PM | S3-01253N4PM |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 3 | S3-00163P3PM | S3-00163N3PM |
| 000 | 20 | 3 | S3-00203P3PM | S3-00203N3PM |
| 000 | 25 | 3 | S3-00253P3PM | S3-00253N3PM |
| 000 | 32 | 3 | S3-00323P3PM | S3-00323N3PM |
| 000 | 40 | 3 | S3-00403P3PM | S3-00403N3PM |
| 00 | 63 | 3 | S3-00633P3PM | S3-00633N3PM |
| 00 | 80 | 3 | S3-00803P3PM | S3-00803N3PM |
| 0 | 100 | 3 | S3-01003P3PM | S3-01003N3PM |
| 0 | 125 | 3 | S3-01253P3PM | S3-01253N3PM |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 7 | S3-00163P7PM | S3-00163N7PM |
| 000 | 20 | 7 | S3-00203P7PM | S3-00203N7PM |
| 000 | 25 | 7 | S3-00253P7PM | S3-00253N7PM |
| 000 | 32 | 7 | S3-00323P7PM | S3-00323N7PM |
| 000 | 40 | 7 | S3-00403P7PM | S3-00403N7PM |
| 00 | 63 | 7 | S3-00633P7PM | S3-00633N7PM |
| 00 | 80 | 7 | S3-00803P7PM | S3-00803N7PM |
| 0 | 100 | 7 | S3-01003P7PM | S3-01003N7PM |
| 0 | 125 | 7 | S3-01253P7PM | S3-01253N7PM |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 6 | S3-00163P6PM | S3-00163N6PM |
| 000 | 20 | 6 | S3-00203P6PM | S3-00203N6PM |
| 000 | 25 | 6 | S3-00253P6PM | S3-00253N6PM |
| 000 | 32 | 6 | S3-00323P6PM | S3-00323N6PM |
| 000 | 40 | 6 | S3-00403P6PM | S3-00403N6PM |
| 00 | 63 | 6 | S3-00633P6PM | S3-00633N6PM |
| 00 | 80 | 6 | S3-00803P6PM | S3-00803N6PM |
| 0 | 100 | 6 | S3-01003P6PM | S3-01003N6PM |
| 0 | 125 | 6 | S3-01253P6PM | S3-01253N6PM |

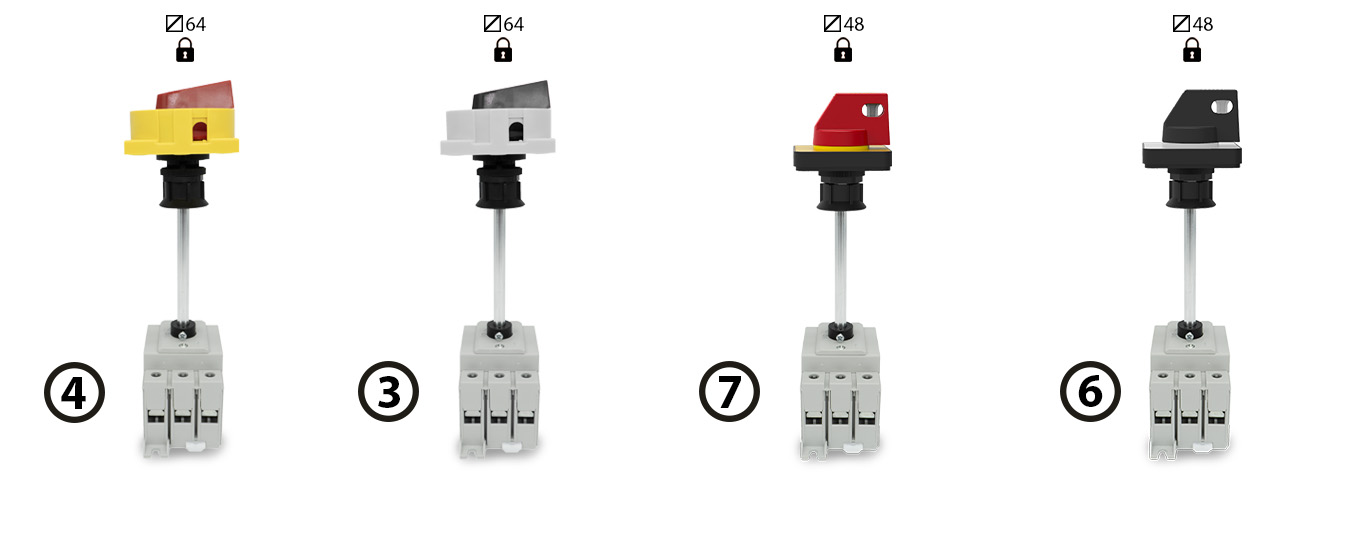

Montaje Fondo Armario
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 4 | S3-00163P4DC | S3-00163N4DC |
| 000 | 20 | 4 | S3-00203P4DC | S3-00203N4DC |
| 000 | 25 | 4 | S3-00253P4DC | S3-00253N4DC |
| 000 | 32 | 4 | S3-00323P4DC | S3-00323N4DC |
| 000 | 40 | 4 | S3-00403P4DC | S3-00403N4DC |
| 00 | 63 | 4 | S3-00633P4DC | S3-00633N4DC |
| 00 | 80 | 4 | S3-00803P4DC | S3-00803N4DC |
| 0 | 100 | 4 | S3-01003P4DC | S3-01003N4DC |
| 0 | 125 | 4 | S3-01253P4DC | S3-01253N4DC |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 3 | S3-00163P3DC | S3-00163N3DC |
| 000 | 20 | 3 | S3-00203P3DC | S3-00203N3DC |
| 000 | 25 | 3 | S3-00253P3DC | S3-00253N3DC |
| 000 | 32 | 3 | S3-00323P3DC | S3-00323N3DC |
| 000 | 40 | 3 | S3-00403P3DC | S3-00403N3DC |
| 00 | 63 | 3 | S3-00633P3DC | S3-00633N3DC |
| 00 | 80 | 3 | S3-00803P3DC | S3-00803N3DC |
| 0 | 100 | 3 | S3-01003P3DC | S3-01003N3DC |
| 0 | 125 | 3 | S3-01253P3DC | S3-01253N3DC |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 7 | S3-00163P7DC | S3-00163N7DC |
| 000 | 20 | 7 | S3-00203P7DC | S3-00203N7DC |
| 000 | 25 | 7 | S3-00253P7DC | S3-00253N7DC |
| 000 | 32 | 7 | S3-00323P7DC | S3-00323N7DC |
| 000 | 40 | 7 | S3-00403P7DC | S3-00403N7DC |
| 00 | 63 | 7 | S3-00633P7DC | S3-00633N7DC |
| 00 | 80 | 7 | S3-00803P7DC | S3-00803N7DC |
| 0 | 100 | 7 | S3-01003P7DC | S3-01003N7DC |
| 0 | 125 | 7 | S3-01253P7DC | S3-01253N7DC |
| Calibre | Amp | Mando | 3P | 3P+N |
| 000 | 16 | 6 | S3-00163P6DC | S3-00163N6DC |
| 000 | 20 | 6 | S3-00203P6DC | S3-00203N6DC |
| 000 | 25 | 6 | S3-00253P6DC | S3-00253N6DC |
| 000 | 32 | 6 | S3-00323P6DC | S3-00323N6DC |
| 000 | 40 | 6 | S3-00403P6DC | S3-00403N6DC |
| 00 | 63 | 6 | S3-00633P6DC | S3-00633N6DC |
| 00 | 80 | 6 | S3-00803P6DC | S3-00803N6DC |
| 0 | 100 | 6 | S3-01003P6DC | S3-01003N6DC |
| 0 | 125 | 6 | S3-01253P6DC | S3-01253N6DC |
