C1 | Automatic Transfer Switch | 63A – 630A

-->

Description

New ATS series of Automatic Transfer Switches. Specially designed to guarantee the power supply in critical installations, such as hospitals, data centers, industrial buildings, among others.

They are composed of 4 different ratings, ranging from 63A up to 630A, in 3P and 3P+N versions.

Advantages of the Automatic Transfer Switch (ATS):

  • High short-circuit withstand capability.
  • Fire protection signal.
  • Quick connection and disconnection.
  • Automatic retransfer.
  • Three-phase monitoring.



Codes

Remote Transfer (G)

Size Amp 3P 3P+N
00 63 C1-00633PSMGB C1-00633NSMGB
00 80 C1-00803PSMGB C1-00803NSMGB
00 100 C1-01003PSMGB C1-01003NSMGB
0 125 C1-01253PSMGB C1-01253NSMGB
0 160 C1-01603PSMGB C1-01603NSMGB
1 250 C1-02503PSMGB C1-02503NSMGB
2 400 C1-04003PSMGB C1-04003NSMGB
2 630 C1-06303PSMGB C1-06303NSMGB

Automatic Transfer (C)

Size Amp 3P 3P+N
00 63 C1-00633PSMCB C1-00633NSMCB
00 80 C1-00803PSMCB C1-00803NSMCB
00 100 C1-01003PSMCB C1-01003NSMCB
0 125 C1-01253PSMCB C1-01253NSMCB
0 160 C1-01603PSMCB C1-01603NSMCB
1 250 C1-02503PSMCB C1-02503PSMCB
2 400 C1-04003PSMCB C1-04003NSMCB
2 630 C1-06303PSMCB C1-06303NSMCB

Downloads

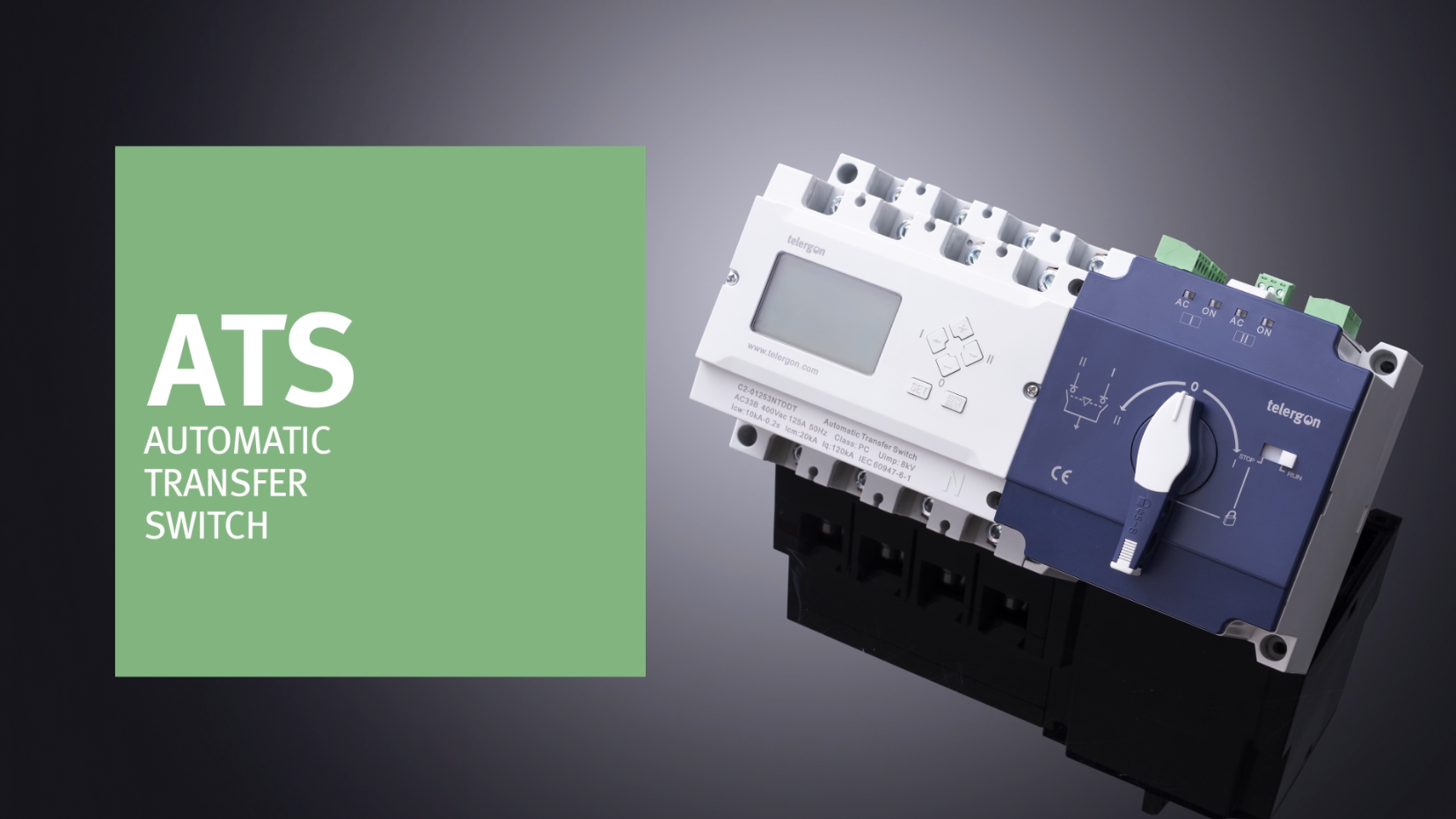

  • ATS: Automatic Transfer Switch
