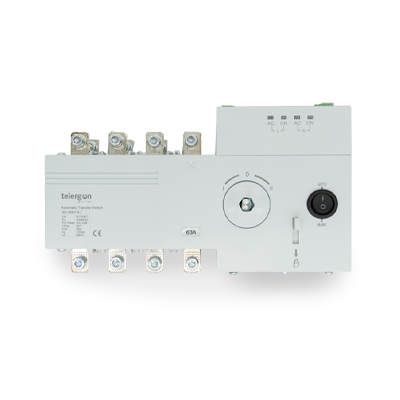

CEC, compact changeover switch for low amperage applications
A compact and efficient changeover switch with a fully optimized performance. This is the changeover switch CEC, the solution with reduced dimensions and distinctive features for low amperage applications.
Available from 63A to 125A and in 3P and 3P+N versions, this changeover switch has been conceived from its origin with a modular concept, which allows to adjust its size according to the required configuration.
As it does not require bridging links, it facilitates assembly possibilities and reduces installation costs, it can be mounted in all orientations and offers different configurations thanks to its movable legs. In addition, the use of captive nut allows for a one-handed wire installation process, simplifying the operation.
Al no necesitar puentes, facilita las posibilidades de montaje y reduce los costes de instalación, además se puede montar en todas las orientaciones y ofrece diferentes configuraciones gracias a sus patas movibles. A ello hay que añadir que los terminales incluyen sujeta-tuercas, que permiten el acceso desde arriba y con una única mano, simplificando el proceso.
Another benefit is the reduction of the installation costs, both from the point of view of time and material. Thanks to the facts that it does not need bridging links, it can be mounted in all orientations and it offers multiple mounting configurations because of its movable legs. In addition, the use of captive nut allows for a one-handed wire installation process, simplifying the operation.
This compact changeover switch has a long mechanical and electrical life, even under extreme conditions, with no derating up to 60ºC and minimal power losses.
It provides added safety protection against accidental overvoltages in the connection between phase and neutral.
If you wish further information about this product, do not hesitate to contact with our Export Sales Department.
