F1 | Compact Changeover Switch | 40A
-->
Description

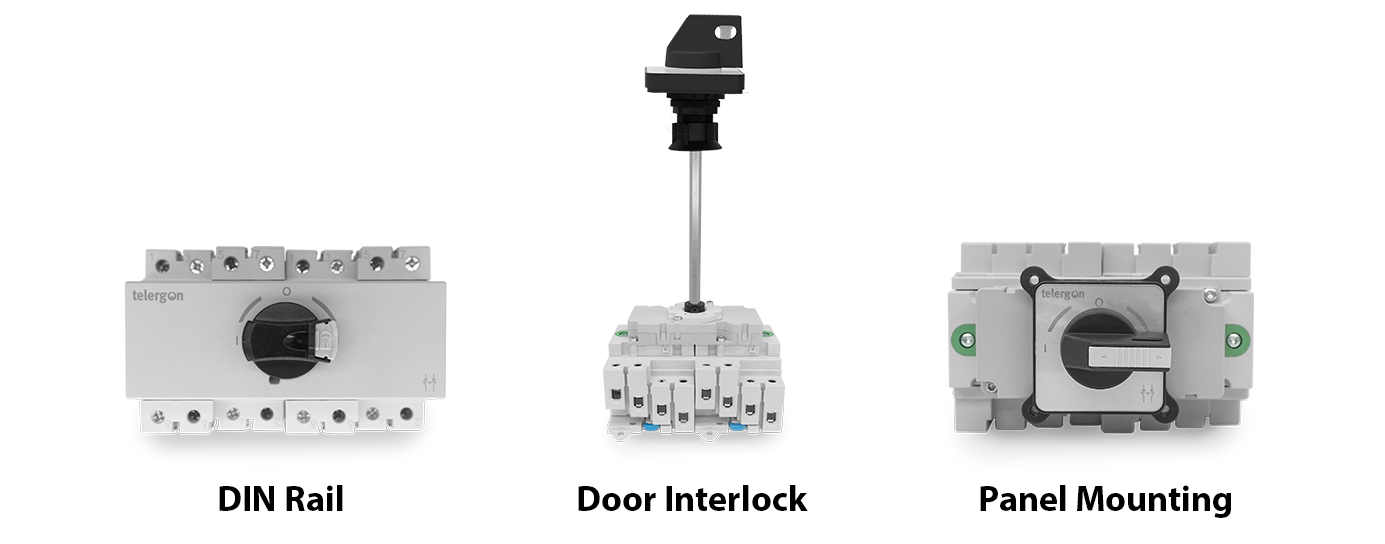

The F1 DC/DC and AC/DC compact changeover switches range is available in 2P and 4P connection schemes for voltages of 800–1000–1200–1500 Vdc. It offers up to three different mounting options: DIN rail, panel mounting and door interlock. The units are designed in accordance with IEC/EN 60947-3 certification and DC-PV1 and DC-PV2 utilisation categories.
Codes
DC/DC
| Mounting | Scheme | Code |

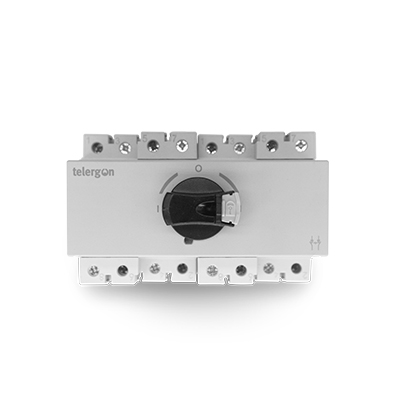

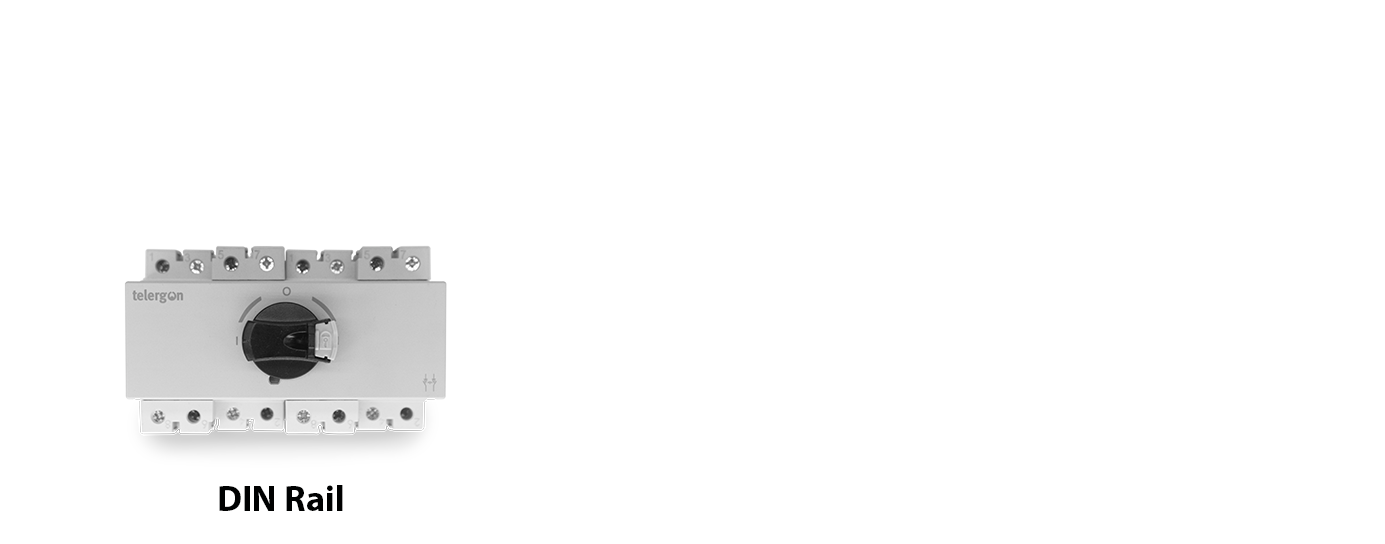

| DIN Rail | 4B | F1L00324B1DB |

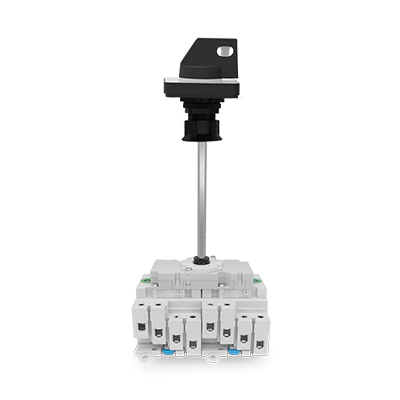

| Fondo armario | 4B | F1L00324B6DC |

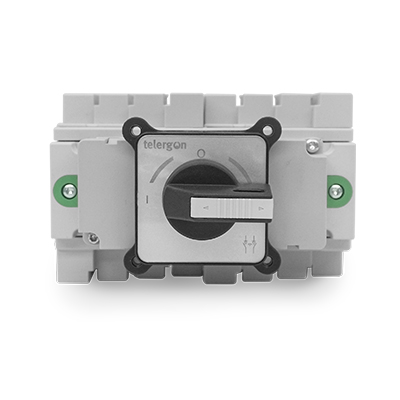

| Tras cuadro | 4B | F1L00324B6PM |
AC/DC
| Mounting | Scheme | Amperage AC (A) | Amperage DC (A) | Code |
| DIN Rail | 4B | 45 | 40 | F1L00324B1DBPA4 |
Downloads
