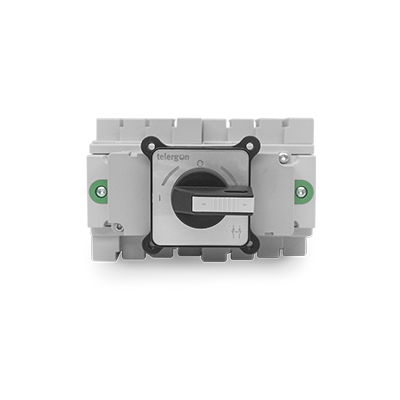

Base mounting switches S5F | AC-DC | 160A – 500A
-->
Description
Base mounting changeover switches to work in AC/DC, in 800Vdc (160A) and in 1000Vdc (from 200A to 315A in AC). Also available (on request) for DC/DC in 1000Vdc from 160A to 500A (4P+4P).
Specially designed for installations with pumping systems.
Codes
MANUAL OPERATION
| Amp. DC | Amp. AC | Size | Connection | 4P+4P |
| 50 | 160 | 0 | Terminal | S5F01604PS0PA4 |
| 160 | 200 | 1 | Terminal | S5F02004PR0PA4 |
| 250 | 315 | 1 | Terminal | S5F03154PR0PA4 |
| 400 | 400 | 1 | Terminal | S5F04004PC0PA4 |
| 500 | 630 | 2 | Terminal | S5F06304PR0PA4 |
MOTORIZED OPERATION
| Amp. DC | Amp. AC | Size | 4P+4P | UM (230Vac) |
| 50 | 160 | 0 | S5F01604PS0PA4 | UM-C0A230Z |
| 160 | 200 | 1 | S5F02004PR0PA4 | UM-C15230Z |
| 250 | 315 | 1 | S5F03154PR0PA4 | UM-C15230Z |
| 400 | 400 | 1 | S5F04004PC0PA4 | UM-C15230Z |
| 500 | 630 | 2 | S5F06304PR0PA4 | UM-C25230M |
