F7 | DC Multi-string Switch-Disconnector | 1500Vdc

Description

The new range of modular DC multi-dstring switch-disconnector F7 series, has been designed especially for photovoltaic installations with multiple strings.

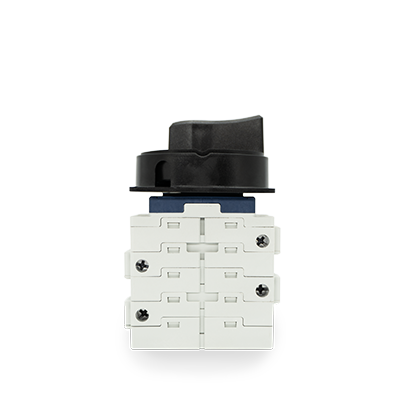

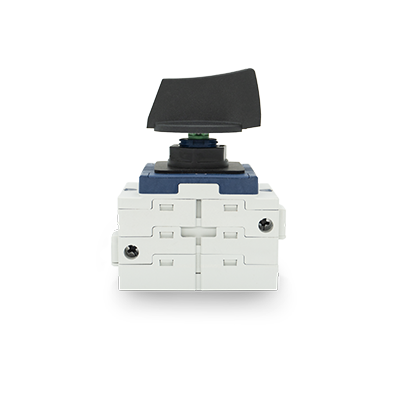

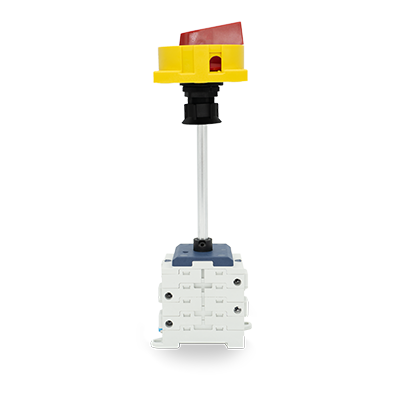

They stand out for their high capacity of customization and configuration. They are available from 13A to 55A up to 1500 Vdc, in 2P up to 10P versions. It includes four types of mounting: DIN Rail (DB), Panel Mounting (PM), Door Interlock (DC), Hole Mounting (HM). In addition to different types of handle: direct, external, with or without lock, black or emergency colour.

They comply the category of use DC-PV1 and DC-PV2. They are designed under IEC/EN60947-3 and UL508i standards.

To see the codes corresponding to each scheme or mounting, download the catalogue here:

Downloads

  • F7: DC Multistring Switch
