S3 | Enclosed Compact Switches | 16A – 125A

Description

Enclosed plastic or aluminium solutions. They are available from 16A to 125A, in 3P, 3P+N, 6P and 8P versions. They are specially designed for use in industrial applications, according to IEC/EN 60947-3 specifications. They have two different types of handle; black lockable handle and yellow/red lockable emergency handle. The enclosure has a protection category of IP66.

Codes

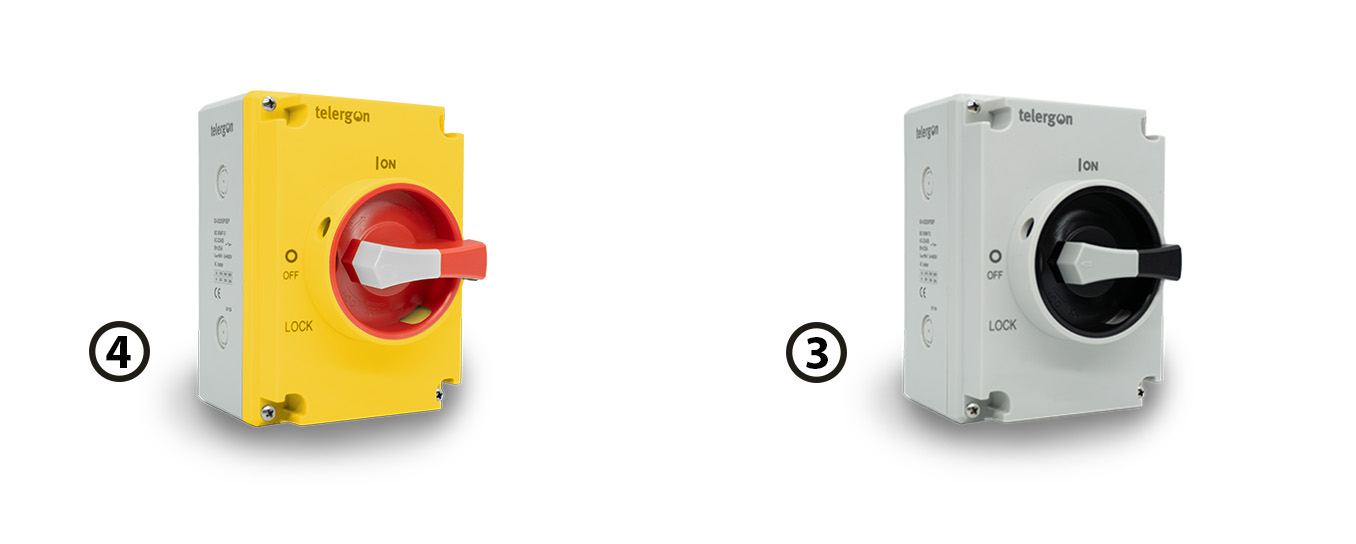

Plastic

Size Amp Handle 3P 3P+N 6P 8P
000 16 4 S3-00163P4EP S3-00163N4EP S3-00166P4EP S3-00168P4EP
000 20 4 S3-00203P4EP S3-00203N4EP S3-00206P4EP S3-00208P4EP
000 25 4 S3-00253P4EP S3-00253N4EP S3-00256P4EP S3-00258P4EP
000 32 4 S3-00323P4EP S3-00323N4EP S3-00326P4EP S3-00328P4EP
000 40 4 S3-00403P4EP S3-00403N4EP S3-00406P4EP S3-00408P4EP
00 63 4 S3-00633P4EP S3-00633N4EP S3-00636P4EP S3-00638P4EP
00 80 4 S3-00803P4EP S3-00803N4EP S3-00806P4EP S3-00808P4EP
0 100 4 S3-01003P4EP S3-01003N4EP
0 125 4 S3-01253P4EP S3-01253N4EP

Size Amp Handle 3P 3P+N 6P 8P
000 16 3 S3-00163P3EP S3-00163N3EP S3-00166P3EP S3-00168P3EP
000 20 3 S3-00203P3EP S3-00203N3EP S3-00206P3EP S3-00208P3EP
000 25 3 S3-00253P3EP S3-00253N3EP S3-00256P3EP S3-00258P3EP
000 32 3 S3-00323P3EP S3-00323N3EP S3-00326P3EP S3-00328P3EP
000 40 3 S3-00403P3EP S3-00403N3EP S3-00406P3EP S3-00408P3EP
00 63 3 S3-00633P3EP S3-00633N3EP S3-00636P3EP S3-00638P3EP
00 80 3 S3-00803P3EP S3-00803N3EP S3-00806P3EP S3-00808P3EP
0 100 3 S3-01003P3EP S3-01003N3EP
0 125 3 S3-01253P3EP S3-01253N3EP

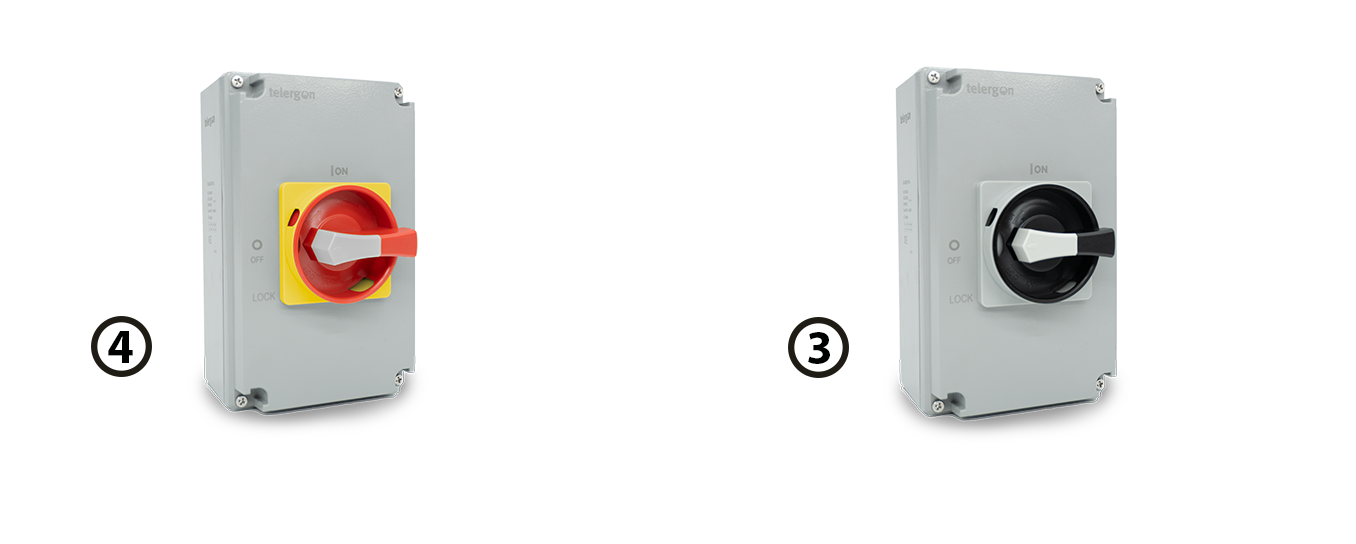

Aluminium

Size Amp Handle 3P 3P+N
000 16 4 S3-00163P4EA S3-00163N4EA
000 20 4 S3-00203P4EA S3-00203N4EA
000 25 4 S3-00253P4EA S3-00253N4EA
000 32 4 S3-00323P4EA S3-00323N4EA
000 40 4 S3-00403P4EA S3-00403N4EA
00 63 4 S3-00633P4EA S3-00633N4EA
00 80 4 S3-00803P4EA S3-00803N4EA

Size Amp Handle 3P 3P+N
000 16 3 S3-00163P3EA S3-00163N3EA
000 20 3 S3-00203P3EA S3-00203N3EA
000 25 3 S3-00253P3EA S3-00253N3EA
000 32 3 S3-00323P3EA S3-00323N3EA
000 40 3 S3-00403P3EA S3-00403N3EA
00 63 3 S3-00633P3EA S3-00633N3EA
00 80 3 S3-00803P3EA S3-00803N3EA

Downloads

  • S3: Switch Disconnectors AC
